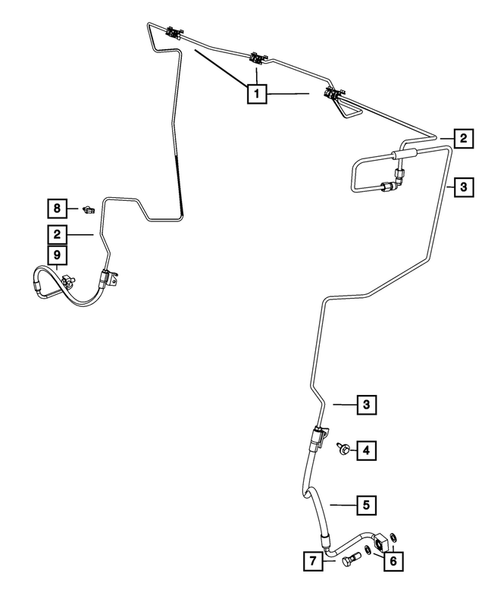

Hydraulic Control Unit, Brake Tubes and Hoses for 2009 Jeep Grand Cherokee
No.
Part # / Description / Price
Price
2
Brake Tube, Right
Mopar
Mopar Description: HCU To Right Front Hose. HCU to Front Brake Hose. ICU to Brake Hose.
3
Brake Tube, Left Mopar
Mopar Description: HCU to Front Brake Hose. HCU To Left Front Hose. ICU to Brake Hose.
4
Hex Head Tapping Screw & Washer, Mounting Mopar
Mopar Description: M6x1.00x18.50. [BR4,BRY] Brake Hose to Sill.
5
MSRP $99.85
$68.71
6
MSRP $3.90
$2.72
6
Brake Hose To Caliper Gasket Mopar
Mopar Description: As Required. Disc Brake Line/Hose. To Caliper-For Item 2,9. Hose and Tube Assembly to Caliper. Brake hose to caliper. 4-Front, 4-Rear.
MSRP $9.20
$6.59
MSRP $9.20
$6.59
7
MSRP $16.70
$12.10
7
Banjo Bolt, Mounting Mopar
Mopar Description: Disc Brake Line/Hose. Brake Hose-As Required. To Caliper-For Item 2,9. Hose and Tube Assembly to Caliper. Brake Hose toCaliper.
MSRP $7.95
$5.75
MSRP $7.95
$5.75
8
Brake Line Clip, Mounting Mopar
Mopar Description: Junction Block to Frame Rail. Repair -Trans Oil Filler. Vacuum reservoir line to body. Hold Item 2 to Frame. To Sill.
MSRP $7.55
$5.32
MSRP $7.55
$5.32
8
Brake Tube Clip, Mounting Mopar
Mopar Description: Brake Tube to Sill. ABS Bracket. ABS Sensor Clip. Push Pin.
9
Brake Hose, Right Mopar
Mopar Positions: Right
Description: Right Front. [ek0,ev0,ez0].
MSRP $99.50
$68.48
MSRP $99.50
$68.48

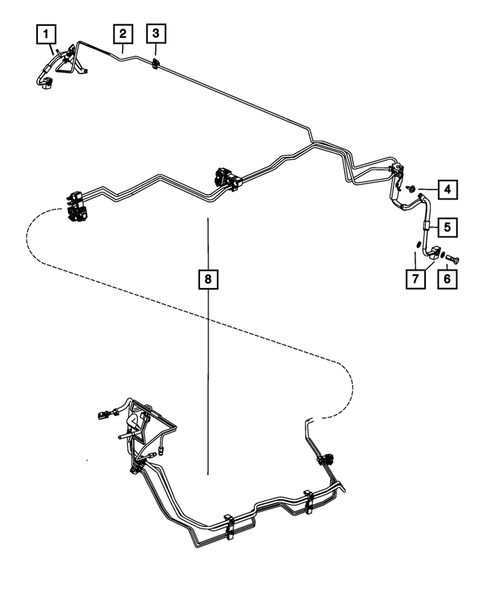

No.
Part # / Description / Price
Price
3
Brake Line Clip, Mounting Mopar
Mopar Description: Junction Block to Frame Rail. Repair -Trans Oil Filler. Vacuum reservoir line to body. Hold Item 2 to Frame. To Sill.
MSRP $7.55
$5.32
MSRP $7.55
$5.32
4
Hex Head Tapping Screw & Washer, Mounting Mopar
Mopar Description: M6x1.00x18.50. [BR4,BRY] Brake Hose to Sill.
6
MSRP $16.70
$12.10
6
Banjo Bolt, Mounting Mopar
Mopar Description: Disc Brake Line/Hose. Brake Hose-As Required. To Caliper-For Item 2,9. Hose and Tube Assembly to Caliper. Brake Hose toCaliper.
MSRP $7.95
$5.75
MSRP $7.95
$5.75
7
MSRP $3.90
$2.72
7
Brake Hose To Caliper Gasket Mopar
Mopar Description: As Required. Disc Brake Line/Hose. To Caliper-For Item 2,9. Hose and Tube Assembly to Caliper. Brake hose to caliper. 4-Front, 4-Rear.
MSRP $9.20
$6.59
MSRP $9.20
$6.59
8
Fuel And Brake Tube Bundle Mopar
Mopar Description: [EK0,EV0] HCU to Rear Brake Hose. [EK0,EV0] To Rear Brake Hoses. For Build Dates up to and Including 8/02/09. For Vehicles Built up to and Including 8/03/09.

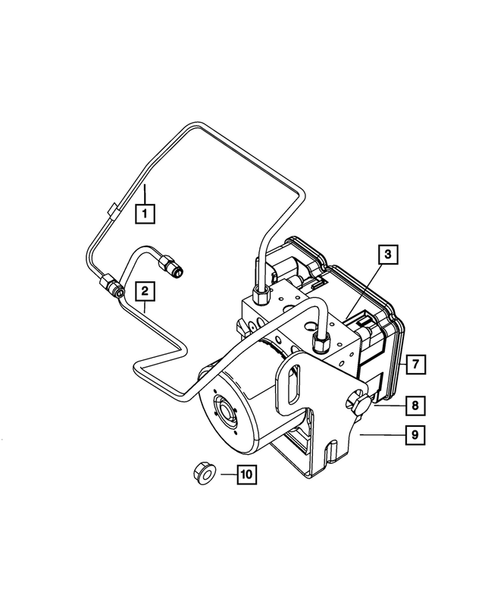

No.
Part # / Description / Price
Price
N/A
Hex Head Screw Mopar
Mopar Description: Abs icu with esp. ABS Bracket Mounting Screw. Motor to Housing. ICU Bracket. Hcu. Module.
MSRP $3.65
$2.54
MSRP $3.65
$2.54
N/A
MSRP $5.05
$3.57
N/A
O Ring Mopar
Mopar Description: Motor to Housing. Icu. Mounts on ECU Post. Pump tower o-ring. Mounts Item 3 to Item 5. For Pump Tower. Pump Tower to HCU Body.
MSRP $9.45
$6.78
MSRP $9.45
$6.78
1
Master Cylinder To Hcu Tube Assembly, Brake Mopar
Mopar Description: Secondary. Master Cylinder to ICU. Master Cylinder to HCU.
3
Anti-Lock Brake Control Unit Mopar
Mopar Description: Use with label on assembly marked 68046110AA.
MSRP $1,135.00
$761.60
MSRP $1,135.00
$761.60
10
Hex Flange Nut, Mounting Mopar
Mopar Description: HCU Bracket. M8x1.25. HCU to Stud Plate. ICU Bracket. Combination Valve Bracket to Master Cylinder Stud. Parking Brake Lever to Dash. Hydralic Control Unit to Stud Plate. Proportioning Valve to Booster Studs. Proportioning Valve to Master Cylinder Stud. HCU to Wheelhouse.
